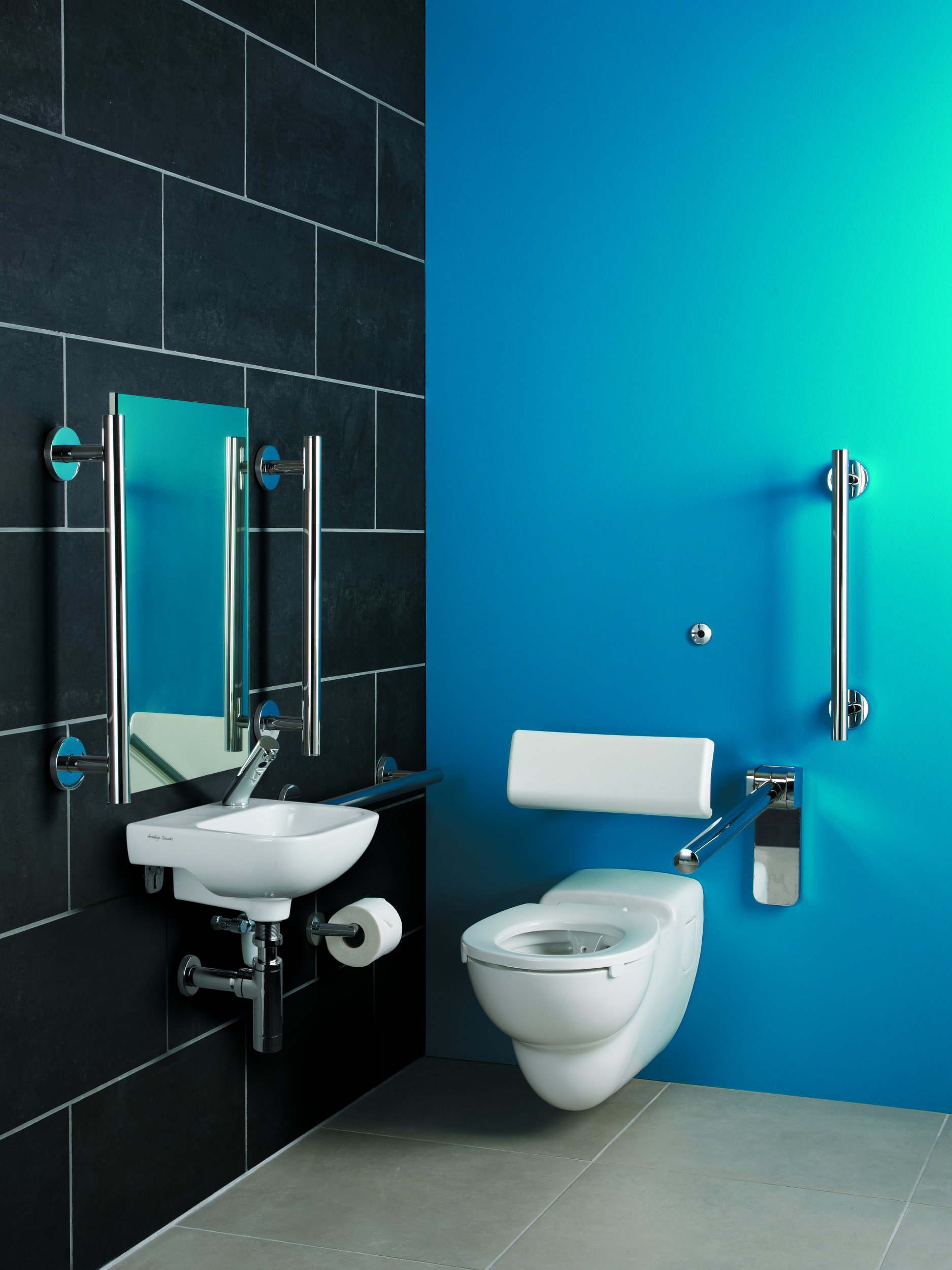

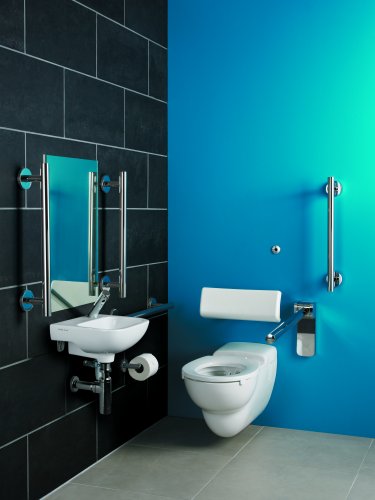

Armitage Shanks Sensorflow Contour 21+ Doc M Wall Hung Pack With Chrome Rails - Left Hand

Doc M packs are available both right and left hand corner arrangement, illustrated is left hand arrangement. Supplied with layout drawings, detailing the fixing positions necessary for Doc M compliance. Mains powered Sensorflow products must be connected to a continuous permanent power supply of these require 220-240 volts and each 1 having its own fuse spur.

Doc M wall mounted pack with rimless WC. Specifically designed to latest recommendations which call for the tap to be positioned more conveniently on the side of the basin closest to the seated user. These packs have a left hand or right hand single taphole basin specific to that need. TMV3 approved underbasin thermostatic mixer valve and sensor activated washbasin mixer. Water saving delay fill 4 or 4.5 litre delay fill Sensorflow WC cistern.

Package Contents:

  • S6986AA Armitage Shanks Sensorflow Contour 21+ Doc M Wall Hung Pack With Chrome Rails - Left Hand
  • S3078 Contour 21 rimless 75cm projection wall hung toilet bowl
    with horizontal outlet
  • S2474 Contour 21 37cm handrinse washbasin right hand taphole
    no overflow or chainstay hole, bottom outlet
  • S9110 Hangers concealed, Steel
  • S8900 Trap 1¼" metal bottle, 75mm seal, outlet screwed 1¼" BSP
    male with compression nut and ring
  • A4852 Sensorflow 21 compact washbasin mounted spout with
    integral sensor, 3.7 litre per minute aerated spray outlet,
    combined inlet servicing valve and filter, mains
  • S6362 Contemporary 21 hinged support rail, 80cm Doc M
    Compliant
  • A5900 TMV thermostatic mixing valve, 15mm
  • N1381 Concept toilet roll holder
  • S8803 Waste 1¼" Click plug waste, 80mm slotted tail
  • S0830 Contour 21 Contemporary grab rail 60cm long
  • S0831 Contour 21 Contemporary grab rail 45cm long
  • S3604 Sensorflow 21 WC flushing device, panel mounted sensor
    complete with concealed valve and 4 or 4.5 litre delay fill
    duct cistern
  • S4066 Contour 21 toilet seat only, top fixing hinges and retaining
    buffers
  • S9139 Support bracket for wall mounted WC raised height with
    bolts
  • S6637 Multi-System back support, white, complete with cushion
  • S4302 Contour 21 flushpipe constructed, necessary for
    installation
...
