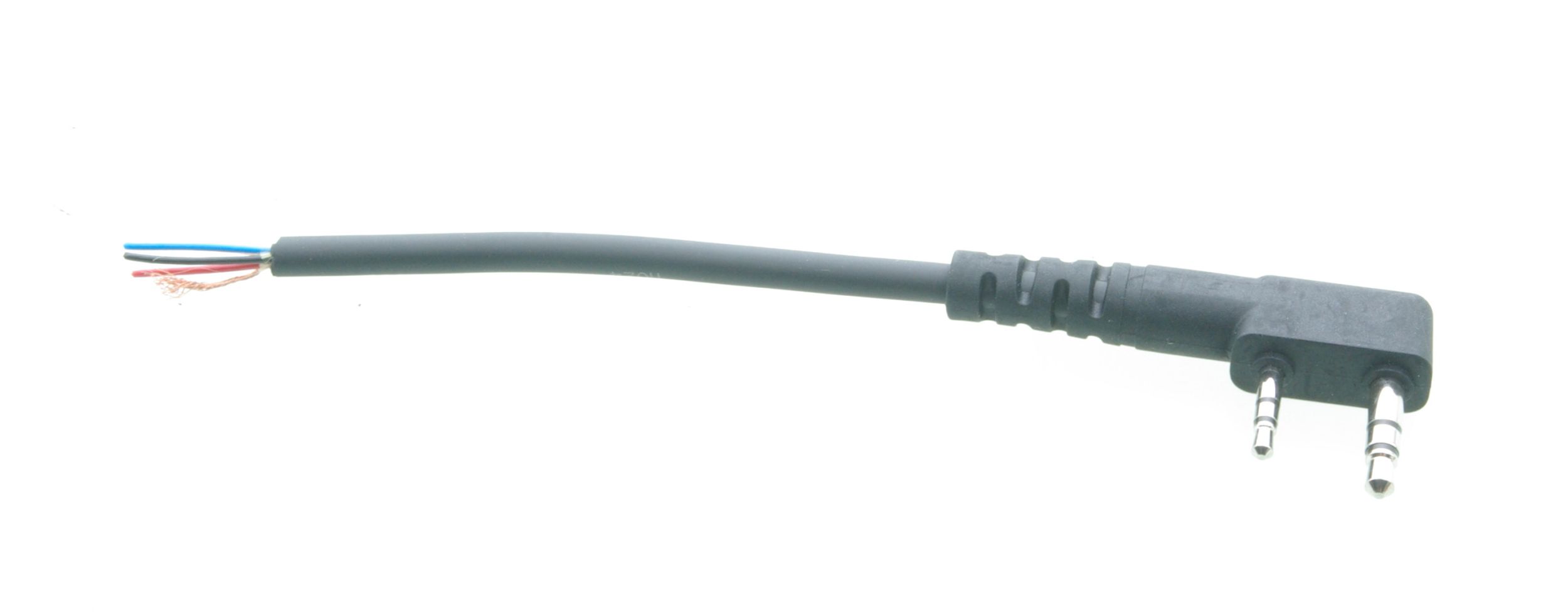

CURLY-K-SHORT | Short Kenwood Curly Cable

A short version of our good quality un-terminated curly cable with a moulded plug like the one in the image to fit Kenwood 2 pin radios. Four pins wired.

It is ideal for audio projects. It cannot be used for programming.

Core connected are:

Audio in (MIC) 3.5mm Ring
Audio Out (Speaker) 2.5mm Tip
PTT (active low) 3.5mm Sleeve
Ground (Common) 2.5mm Sleeve

Ideal as a replacement cable for headsets and speaker-mics or for connecting DIY audio devices
We also have a long straight version of this cable which is up to 1.4m long.

Straight version of this cable.
Curly version of this cable.

*

CURLY-K-SHORT

• Overall Diameter 4mm

• Plug to Curly 90mm

• Curly Relaxed 210mm

• Curly Stretched 1m

• Curly to end 170mm

Please note these measurements are nominal please get in touch if you require more precise specifications.
